140 | def update(self, output_results, img_info, img_size):
self.frame_id += 1
activated_starcks = [] # 保存当前帧匹配到的持续跟踪的轨迹
refind_stracks = [] # 保存当前帧匹配到之前目标丢失的轨迹
lost_stracks = [] # 保存当前帧没有匹配到目标的轨迹
removed_stracks = [] # 保存当前帧要移除的轨迹

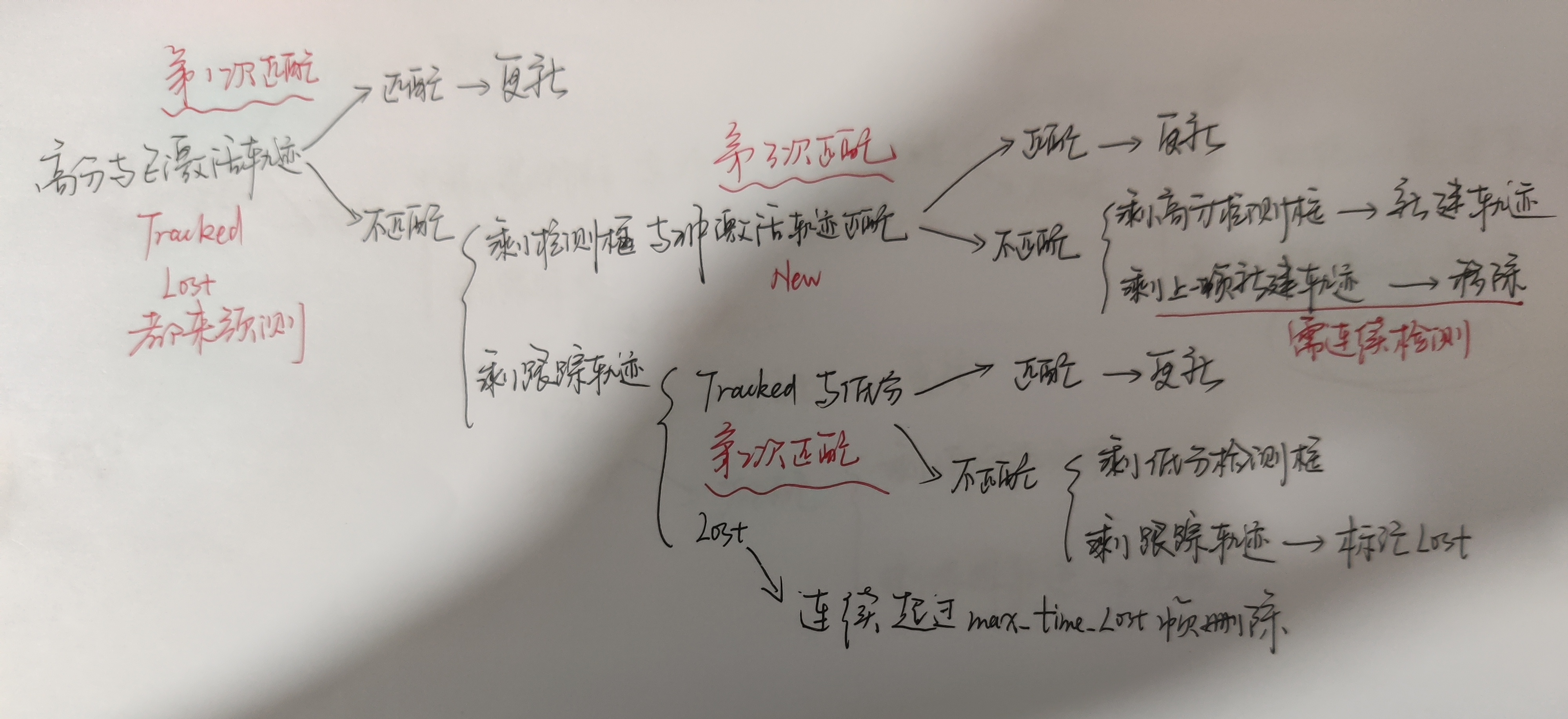

# 第一步， 将objects转换为[x1, y1, x2, y2, score]格式，构建strack
if output_results.shape[1] == 5:
scores = output_results[:, 4]
bboxes = output_results[:, :4]
else:
output_results = output_results.cpu().numpy()
scores = output_results[:, 4] * output_results[:, 5]
bboxes = output_results[:, :4] # x1y1x2y2
img_h, img_w = img_info[0], img_info[1]
scale = min(img_size[0] / float(img_h), img_size[1] / float(img_w))
bboxes /= scale
# 按置信度分为高分匹配（第一次， 置信度>track_thresh）， 低分匹配（第二次， 置信度介于0.1到thrack_thresh）
remain_inds = scores > self.args.track_thresh
inds_low = scores > 0.1
inds_high = scores < self.args.track_thresh
inds_second = np.logical_and(inds_low, inds_high)
dets_second = bboxes[inds_second] # 用于第二次匹配的目标框
dets = bboxes[remain_inds] # 用于第一次匹配的目标框
scores_keep = scores[remain_inds]
scores_second = scores[inds_second]
if len(dets) > 0:
'''Detections'''
detections = [STrack(STrack.tlbr_to_tlwh(tlbr), s) for
(tlbr, s) in zip(dets, scores_keep)]
else:
detections = []
''' Add newly detected tracklets to tracked_stracks'''
unconfirmed = []
tracked_stracks = [] # type: list[STrack]
for track in self.tracked_stracks:
if not track.is_activated:
unconfirmed.append(track)
else:
tracked_stracks.append(track)

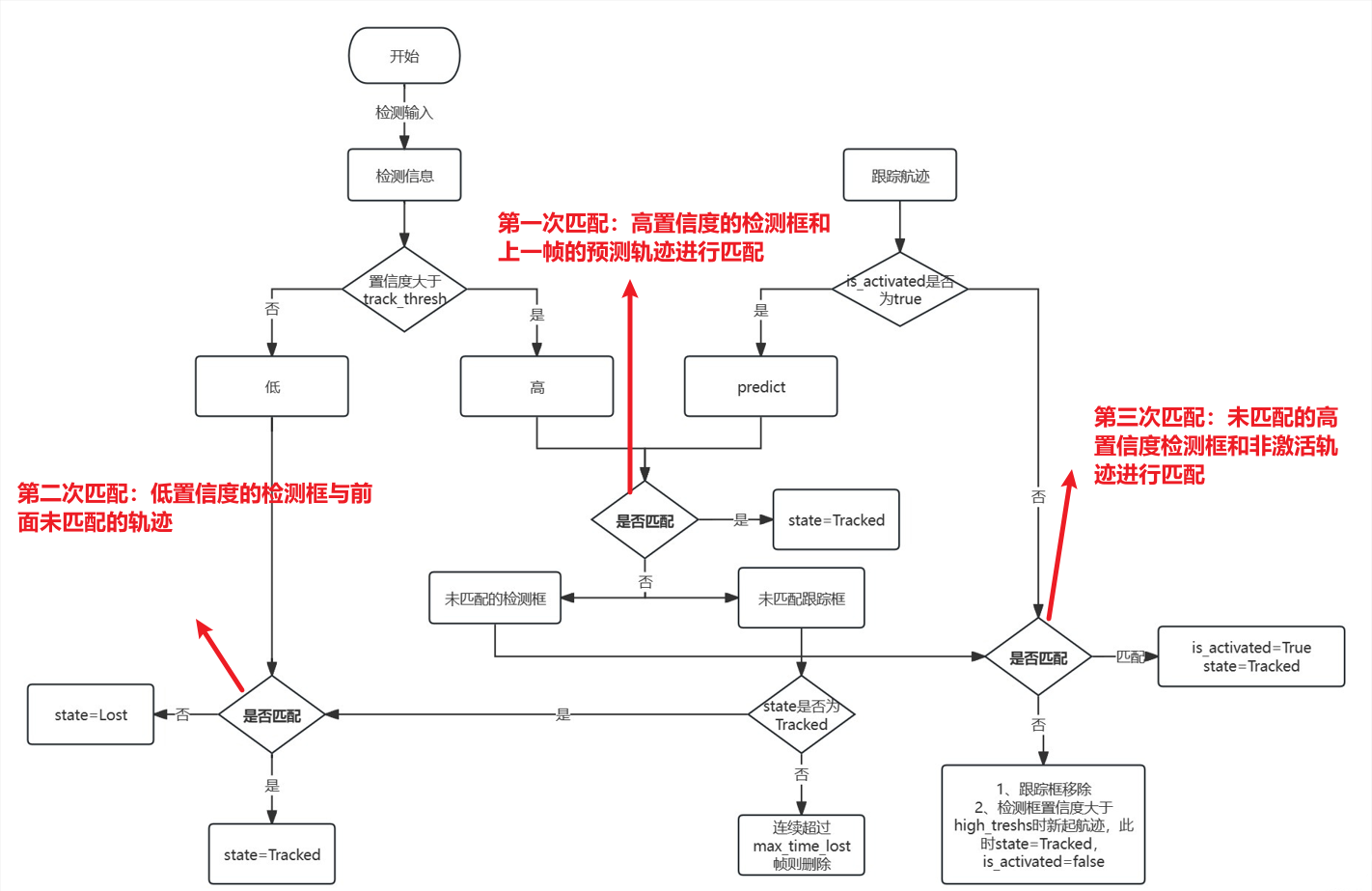

''' Step 2: First association, with high score detection boxes'''
# 第一次匹配
# 将tracked_stracks和lost_stracks先预测得到预测框，与高分框做匹配
# tracked_stracks和lost_stracks都是已经激活的状态
strack_pool = joint_stracks(tracked_stracks, self.lost_stracks)
# 根据这些轨迹利用卡尔曼滤波预测这次的目标框位置
STrack.multi_predict(strack_pool)
dists = matching.iou_distance(strack_pool, detections)
if not self.args.mot20:
dists = matching.fuse_score(dists, detections)
matches, u_track, u_detection = matching.linear_assignment(dists, thresh=self.args.match_thresh)
for itracked, idet in matches:
track = strack_pool[itracked]
det = detections[idet]
if track.state == TrackState.Tracked:
track.update(detections[idet], self.frame_id)
activated_starcks.append(track)
else:
track.re_activate(det, self.frame_id, new_id=False)
refind_stracks.append(track)
''' Step 3: Second association, with low score detection boxes'''
# 第二次低分与未匹配的轨迹（状态为Tracked的轨迹）
# association the untrack to the low score detections
if len(dets_second) > 0:
'''Detections'''
detections_second = [STrack(STrack.tlbr_to_tlwh(tlbr), s) for
(tlbr, s) in zip(dets_second, scores_second)]
else:
detections_second = []
r_tracked_stracks = [strack_pool[i] for i in u_track if strack_pool[i].state == TrackState.Tracked]
dists = matching.iou_distance(r_tracked_stracks, detections_second)
matches, u_track, u_detection_second = matching.linear_assignment(dists, thresh=0.5)
for itracked, idet in matches:
track = r_tracked_stracks[itracked]
det = detections_second[idet]
if track.state == TrackState.Tracked:
track.update(det, self.frame_id)
activated_starcks.append(track)
else:
track.re_activate(det, self.frame_id, new_id=False)
refind_stracks.append(track)
for it in u_track:
track = r_tracked_stracks[it]
if not track.state == TrackState.Lost:
track.mark_lost()
lost_stracks.append(track)
'''Deal with unconfirmed tracks, usually tracks with only one beginning frame'''
# 第三次匹配， 第一次未匹配的高分检测框与非激活轨迹匹配（上一帧刚刚新建的轨迹）
detections = [detections[i] for i in u_detection]
dists = matching.iou_distance(unconfirmed, detections)
if not self.args.mot20:
dists = matching.fuse_score(dists, detections)
matches, u_unconfirmed, u_detection = matching.linear_assignment(dists, thresh=0.7)
for itracked, idet in matches:
unconfirmed[itracked].update(detections[idet], self.frame_id)
activated_starcks.append(unconfirmed[itracked])
for it in u_unconfirmed:
track = unconfirmed[it]
track.mark_removed()
removed_stracks.append(track)
# 第三次匹配后，仍然剩余的高分检测框，来新建轨迹，除第一帧外，新建的轨迹都是未激活的状态，也就是说，需要连续检测才能激活
""" Step 4: Init new stracks"""
for inew in u_detection:
track = detections[inew]
if track.score < self.det_thresh:
continue
track.activate(self.kalman_filter, self.frame_id)
activated_starcks.append(track)
#第1次匹配后，剩余连续Lost状态的轨迹，超过max_time_lost帧删除
""" Step 5: Update state"""
for track in self.lost_stracks:
if self.frame_id - track.end_frame > self.max_time_lost:
track.mark_removed()
removed_stracks.append(track)
# print('Ramained match {} s'.format(t4-t3))
self.tracked_stracks = [t for t in self.tracked_stracks if t.state == TrackState.Tracked]
self.tracked_stracks = joint_stracks(self.tracked_stracks, activated_starcks)
self.tracked_stracks = joint_stracks(self.tracked_stracks, refind_stracks)
self.lost_stracks = sub_stracks(self.lost_stracks, self.tracked_stracks)
self.lost_stracks.extend(lost_stracks)
self.lost_stracks = sub_stracks(self.lost_stracks, self.removed_stracks)
self.removed_stracks.extend(removed_stracks)
self.tracked_stracks, self.lost_stracks = remove_duplicate_stracks(self.tracked_stracks, self.lost_stracks)
# get scores of lost tracks
output_stracks = [track for track in self.tracked_stracks if track.is_activated]
return output_stracks
|
